STANDING SEAM ROOFING

Standing Seam metal roofing is one of the oldest and most practical roofing solutions. Its classical look enhances the roofline of virtually any architectural style. Once installed, its dramatic shadow lines run continuously from ridge to eave, accenting the pitch and plane of every roof angle. Our Standing Seam panels can be ordered in a variety of styles, with more than two dozen Cool Roof color choices or elegant bare metals.

Titan Snap
Titan Mechanical
Copper
Colors
TITAN STANDING SEAM PANELS
(SNAP LOCK)

T hese Titan Standing Seam panels overlap at the seam, snap and lock into place. Select the seam height, panel width and options best suited to your job. Click on the architectural color selection chart for available finishes, but please request an actual metal sample for final paint and color selection.

TITAN SL-100 SNAP LOCK

  • Seam Height: 1
  • Standard Panel Widths: 12, 16
  • Minimum Slope: 3:12
  • Optional Items: Stiffening Ribs or Striations
  • Approvals:Please ask a CBM Representative

Common applications:

  • Residential
  • Light Commercial

This panel is recommended for roof slopes greater than 3:12 roof pitch. Stiffening ribs or striations are recommended, but optional.

Features:

  • Can be roll-formed on the jobsite to eliminate damage and waste
  • Built-in concealed fastener system

Download SL-100 Fact Sheet


TITAN SL-1750 SNAP LOCK

  • Seam Height: 1.75
  • Standard Panel Widths: 14, 18
  • Minimum Slope: 3:12
  • Optional Items: Stiffening Ribs or Striations
  • Approvals: Please ask a CBM Representative

Common applications:

  • Residential
  • Commercial
  • Public Works

This panel is recommended for roof slopes greater than 3:12 roof pitch. Stiffening ribs or striations are recommended, but optional.

Features:

  • Can be roll-formed on the jobsite to eliminate damage and waste
  • Concealed
    fastener system

Download SL-1750 Fact Sheet


TITAN SLZ-1000 SNAP LOCK

  • Seam Height: 1
  • Standard Panel Widths: 13, 17
  • Minimum Slope: 3:12
  • Optional Items: Stiffening Ribs or Striations
  • Approvals: Please ask a CBM Representative

Common applications:

  • Residential
  • Light Commercial

This panel is recommended for roof slopes greater than 3:12 roof pitch. Stiffening ribs or striations are recommended, but optional.

Features:

  • Can be roll-formed on the jobsite to eliminate damage and waste
  • Concealed
    fastener system

Download SLZ-1000 Fact Sheet

The above panel illustrations are renderings only. The actual striations and/or ribs may have different dimensions. Both of these options help to reduce oil canning. Note that oil canning is not a cause for rejection.

TITAN STANDING SEAM PANELS (MECHANICAL-SEAM LOCKING)

Titan Mechanical Standing Seam panels feature a seam thats mechanically locked into place, providing the highest degree of strength. They are available in a range of panel widths with varying seam heights; select the seam height, panel width and options best suited to your job. Click on the architectural color selection chart for available finishes, but request an actual metal sample for final paint and color selection.

For more details and to compare features, options and benefits of our Standing Seam metal panel systems see the fact sheet downloads in PDF format.

TITAN CB-2000 MECHANICAL SEAM

  • Seam Height: 2
  • Standard Panel Widths: 14, 18
  • Minimum Slope: :12
  • Optional Items: Stiffening Ribs or Striations
  • Approvals: Please ask a CBM Representative

Common applications:

  • Residential
  • Commercial
  • Public Works

This panel is recommended for roof slopes as low as :12 roof pitch. Stiffening ribs or striations are recommended, but optional.

Features:

  • Can be roll-formed on the jobsite to eliminate damage and waste
  • Concealed fastener system

Download CB-2000 Fact Sheet


TITAN CB-150 MECHANICAL SEAM

  • Seam Height: 1.5
  • Standard Panel Widths: 12, 16
  • Minimum Slope: 1:12
  • Optional Items: Stiffening Ribs or Striations
  • Approvals: Please ask a CBM Representative

Common applications:

  • Over solid decks or spaced purlins
  • Residential
  • Commercial
  • Public Works

This panel is recommended for roof slopes as low as 1:12 roof pitch. Stiffening ribs or striations are recommended, but optional.

Features:

  • Can be roll-formed on the jobsite to eliminate damage and waste
  • Concealed fastener system

Download CB-150 Fact Sheet


TITAN CB-100 MECHANICAL SEAM

  • Seam Height: 1
  • Standard Panel Widths: 13, 17
  • Minimum Slope: 1:12
  • Optional Items: Stiffening Ribs or Striations
  • Approvals: Please ask a CBM Representative

Common applications:

  • Residential
  • Light Commercial

This panel is recommended for roof slopes greater than 1:12 roof pitch. Stiffening ribs or striations are recommended, but optional.

Features:

  • Can be roll-formed on the jobsite to eliminate damage and waste
  • Concealed fastener system

Download CB-100 Fact Sheet

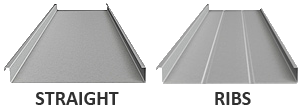

The above panel illustrations are renderings only. The actual striations and/or ribs may have different dimensions. Both of these options help to reduce oil canning. Note that oil canning is not a cause for rejection

COPPER, RHEINZINK & BARE ZINCALUME

Northbay Roofing & Gutter Co. Images Often a home or commercial project can be enhanced by the natural look of bare metal rather than a coated color. We offer all our product profiles in copper, Rheinzink and bare Zincalume for a traditional metal look. In true copper, these products develop a natural patina over time. There are no reflective or emissive properties to these products.

Copper products come with a lifetime warranty; bare Zincalume has a 20-year warranty.

Northbay Roofing & Gutter Co. Images
